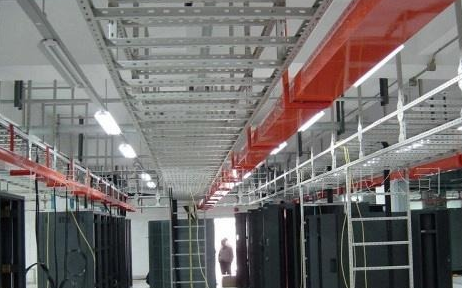

Installation of cable bridge, first of all, should install the cable bridge support hanger can! But do you know how to install the suspension bracket of cable bridge? Next, the small edition of Jinan Cable Bridge Frame will give you an analysis of some matters needing attention in the installation of the suspension frame!

1、架與吊架所用鋼材應平直，無顯著扭曲。下料后長短偏差應在3mm范圍內，切口處應無卷邊、毛刺。

1. The steel used for the frame and hanger shall be straight without significant distortion. The length deviation should be within 3 mm after cutting, and the incision should be free of crimping and burrs.

2、支架與吊架應焊接牢固，無顯著變形，焊接前厚度超過4mm的支架、鐵件應打坡口，焊縫均勻平整，焊縫長度應符合要求，不得出現裂紋、咬邊、氣孔、凹陷、漏焊等缺陷。

2. The bracket and hanger should be welded firmly without significant deformation. Before welding, the bracket and iron parts with a thickness of more than 4 mm should be grooved. The weld seam should be uniform and smooth. The length of the weld seam should meet the requirements. No cracks, undercutting, gas holes, sags and leakage of welding should occur.

3、架與吊架應安裝牢固，保證橫平豎直，在有坡度的建筑物上安裝支架與吊架應與建筑物的坡度、角度一致.

3. The brackets and hangers should be installed firmly to ensure horizontal and vertical. The brackets and hangers should be installed on buildings with slopes in accordance with the slopes and angles of the buildings.

4、吊具應采用定型產品，并應有各自獨立的吊裝卡具或支撐系統。

4. Lifting fixtures shall adopt stereotyped products and shall have their own independent lifting fixtures or supporting systems.

5、定支點間距一般不應大于1. 5-2m。在進出接線盒、箱、柜、轉角、轉彎和變形縫兩端及丁字接頭的三端500mm以內應設固定支持點.

5. Fixed fulcrum spacing should not be greater than 1.5-2m in general. Fixed support points shall be provided within 500 mm at the ends of outlet junction box, box, cabinet, corner, turning and deformation seam and three ends of T-joint.

6、禁用木磚固定支架與吊架。

6. Prohibit wooden brick fixing brackets and hangers.
